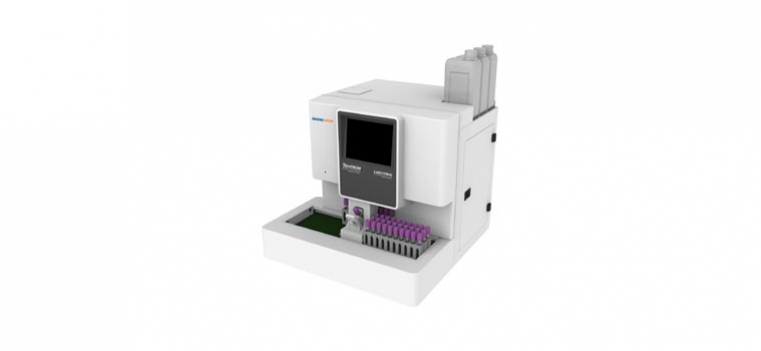

NANO H110

Fully-Automated HPLC Analyzer

overview

Trivitron's NANO H110, a fully-automated HPLC analyzer is compact and has dual testing mode – hemoglobin and thalassemia.

Features

Compact, automated High Performance Liquid Chromatography (HPLC) analyzer with Hb variant detection
Ion exchange chromatography testing & sampling system
Fast turnaround time by reporting results in less than 130 secs
Fully automated loader – 110 samples at a time
Dual Mode – Hemoglobin & Thalassemia
NGSP & IFCC Preferred Methodology

Technical Specifications

Methodology: High-Performance Liquid Chromatography (HPLC)
Test Modes: Fast mode, variant mode
Auto Sample Station: 110 Positions
Sample Type: Whole blood sample or Diluted sample
Matched Reagents: Eluents A, B, C and hemolytic agent

Power Supply:
Voltage: AC 100V~240V
Frequency: 50Hz/60Hz
Input power: 120VA

Operating Environment:
Environment temperature: 10℃~35℃
Humidity: ≤93%
Air pressure: 75kPa~106kPa
