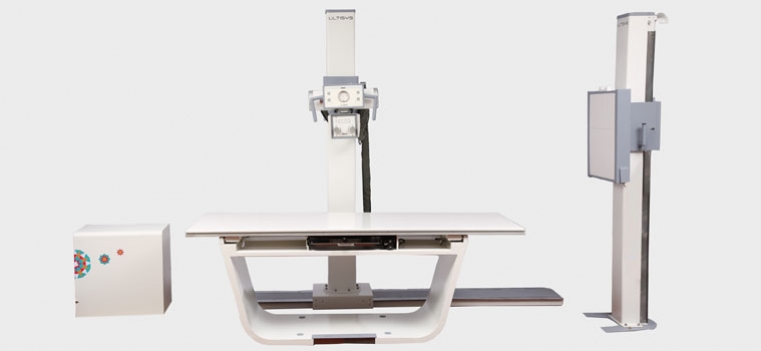

ULTISYS is a versatile radiography system that offers a cost-effective set-up with a high degree of clinical flexibility.
ULTISYS is a versatile radiography system that offers a cost-effective set-up with a high degree of clinical flexibility.
|
GENERATOR |
|||||
|
Output Rating |
32kW |
40kW |
52kW |
68kW |
82kW |
|
kV Range |
40-125kv |
40-125kV |
40-150kV |
40-150kV |
40-150kV |
|
mA Range |
10-400mA |
10-500mA |
10-640mA |
10-800mA |
10-1000mA |
|
mAs Range |
0.1-500mAs |
0.1-500mAs |
0.1-500mAs |
0.1-500mAs |
0.1-500mAs |
|
400mA@80kV |
500mA@80kV |
640mA@81kV |
800mA@85kV |
1000mA@82kV |
|
|
320mA@100kV |
400mA@100kV |
500mA@104kV |
640mA@106kV |
800mA@102kV |
|
|
250mA@125kV |
320mA@125kV |
400mA@130kV |
500mA@136kV |
640mA@128kV |
|
|
|
|
320mA@150kV |
400mA@150kV |
500mA@150kV |
|
|
Leakage Radiation |
<2mR/hr |
<2mR/hr |
<2mR/hr |
<2mR/hr |
<2mR/hr |
|
CELLING FREE TUBE
STAND |
4 WAY FLOATING TABLE TOP |
||||
|
Tube rotation angle |
± 180° |
Table Top |
L : 2360mm X W : 760mm X
H : 750 |
||
|
Longitidinal Travel |
2500mm |
Filtration 1.2mmAl |
|||
|
Brake Mechanism |
Electro-magnetic |
Max. Patient Weight 300kg
Upgradable to 400 kg |
|||
|
Balance |
Counter Weight |
Bucky type |
Fixed detector holder
with integrated High Density Grid. |
||
|
Tube centered to Bucky |
Grid |
Electro-Magnetic
(Logitudinal and Transverse movement) |
|||
|
Fully counterbalance tube
holding arm |
Lock(Brake) |
Ratio 8:1, 178 LP, Focal Distance
: 100cm |
|||
|

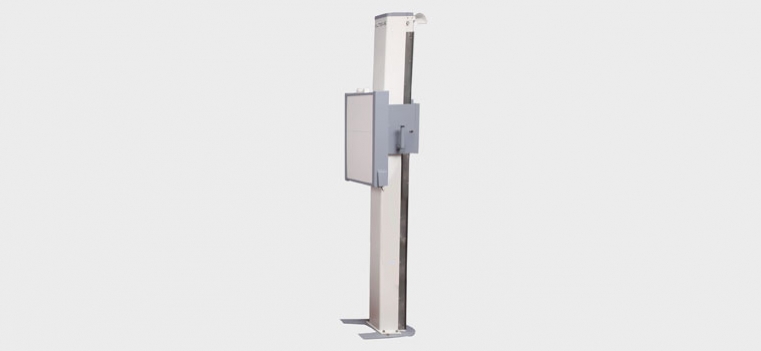

BUCKY WALL STAND |
X-RAY TUBE |
||||
|
Vertical Travel |
1260mm |
Anode Speed : Low and
High |
|||
|
Brake Mechanism |
Electro - magnetic |
HU : 140 kHU to 400 kHU |
|||
|
Bucky Type |
Fixed detector holder
with integrated High Density grids |
|
|
||
|
Grid |
Focal distance: 150 cm |
|
|
||
