Convert existing analog X-ray system to a low dose,high resolution Digital Radiography SystemDR retrofit kit includes a Flat Panel Detector, Medical Grid Monitor and an intuitive software for Image Acquisition & Image Processing

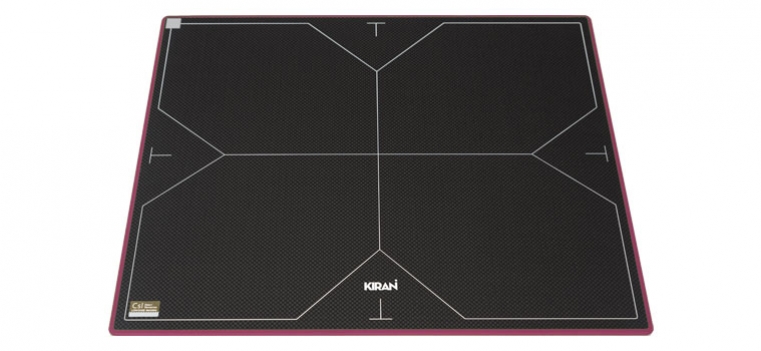

Flat Panel Detector
Wi-Fi
Wireless Acquisition& Transfer
Scintillator
Direct Deposit CsI:TI
Digital Retina Technology
Lightning Fast Acquisition
Powerful Image Processing
High Resolution Display
Full Field AED
Auto Trigger Mechanism
Usage
• Convert any Analog X-ray to a full DigitalRadiography Solution with Kiran DR Retrofit Kit
• Lightweight, rugged,wireless, cassette sized detector that can be used with both mobile and fixed conventional X-ray system
Benefits
• Wireless detector with Wi-Fi enabled system
• Ease of sharing DR solution across multiple X-ray systems
• Light weight and slim design with built-in foldable handle
• 14” x 17” cassette-sized wireless detector
• Extra-long battery life with 1400 shots and 7 hours stand-by time
• The best performance CsI direct-deposition technology onTFT/PIN PD panel and low noise electronics
• Better image quality at the lowest dose
• Shorter exposure time resulting in better image quality
• Instant image display leading to higher throughput

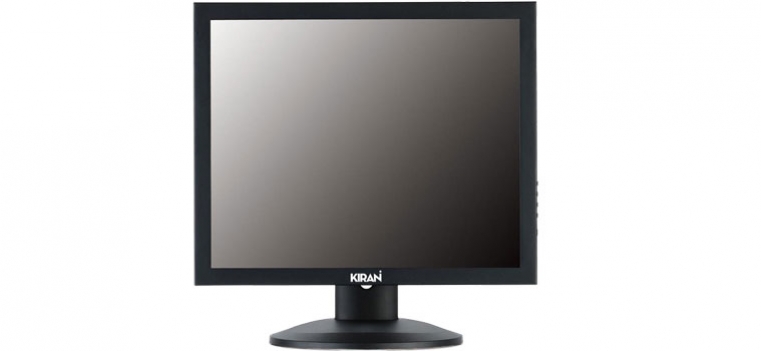

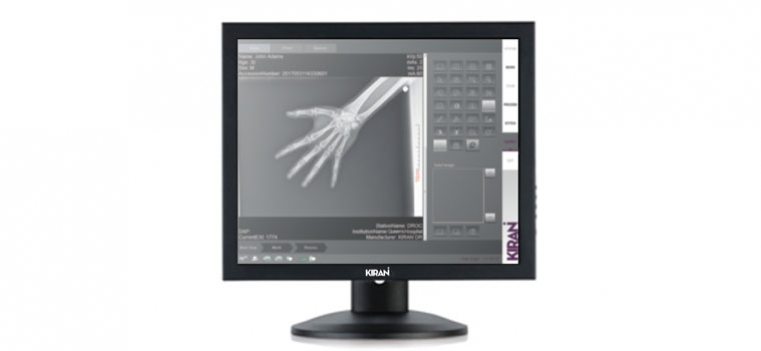

Diagnostic Medical Display
DICOM IMAGES WITH HIGH ACCURACY
1MP gray scale diagnostic medical display
Black Alloy CaseContrast ratio 900:1
Display ratio 5:4
Easy Installation
Brightness Stabilization System
Display Size : 19”Resolution : 1280 x 1024
Max. Brightness : 1000cd/m²
Viewing Angle : 170/170DICOM Standard
Compatible with International Medical Standard Application : DSA / DSI / CT / PACS acquisition workstation
Sensor
| Scintillator | Direct Deposit CsI : TI |
| Active Area | 433.7 x 354.8mm |
| Pixel Array | 2816 x 2304 |
| Pixel Pitch | 154μm |
Communication Interface
| Communication Interface | Gigabit Ethernet 2.4/5 GHz, 300Mbps |
| Image Acquisition Time | 2-3s (wired) and 4-5s (wireless) |
| Exposure Control | F²AED Manual Sync |
Environmental
| Operating Temperature Range | 5-35°C |
| Humidity Range (Non-condensing) | 30%-75% RH |
| Storage Temperature Range | -20-55°C |
| Humidity Range | 10%-90% RH |
Mechanical
| Dimensions | 460 X 384 X 15mm (18.11” X 15.11” X 0.59”) |
| Weight | 3.7 Kg (8.16 lbs.) |
| Housing Material | Carbon Fiber Front High Strength Aluminum Alloy Back |
Power
| Power Dissipation | 8W (Standby) 20W (Operating) |
| Power Supply | Power Supply |
| Frequency | 50/60Hz |
Intuitive Image Acquisition & Image Processing
